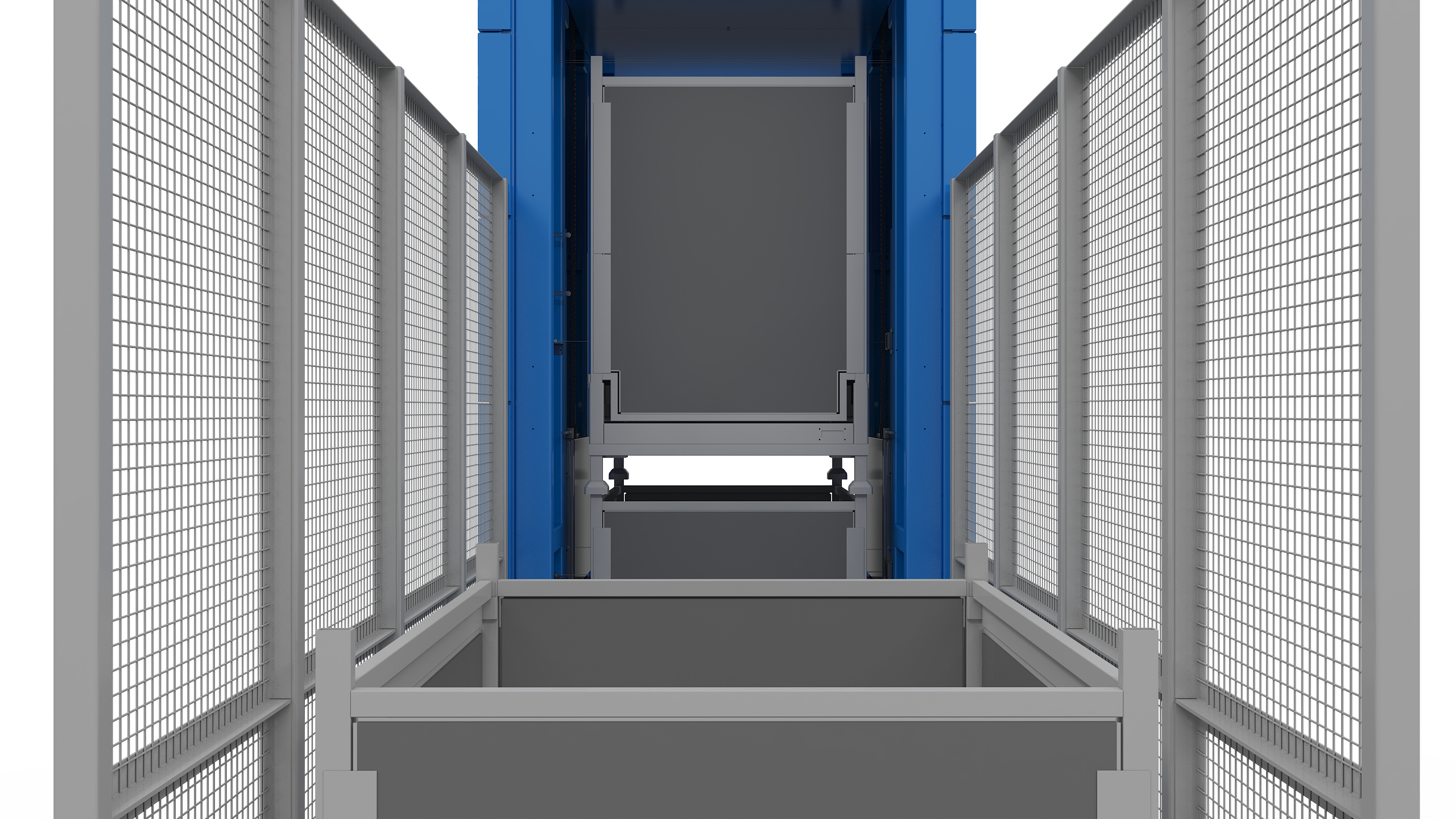

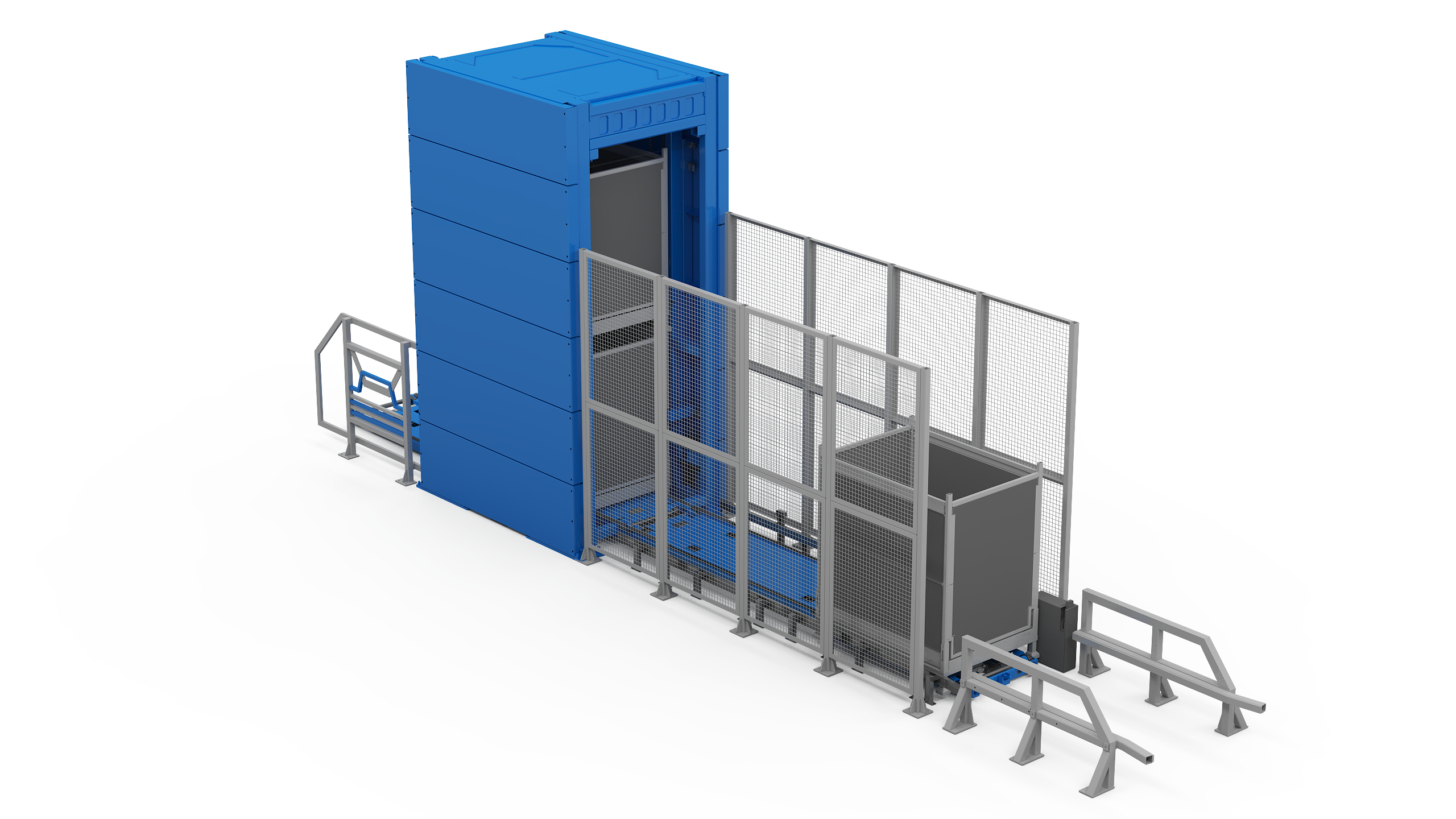

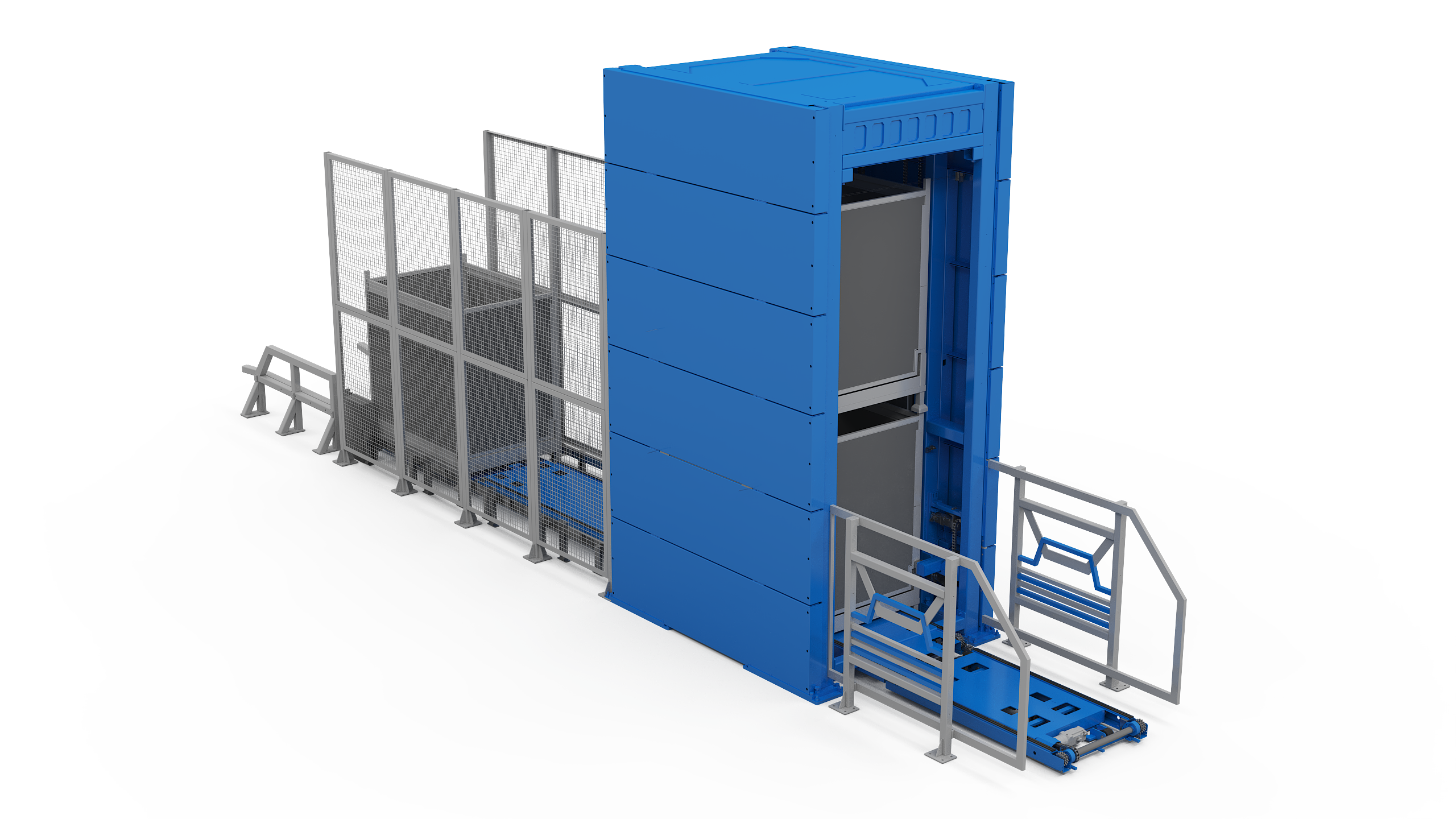

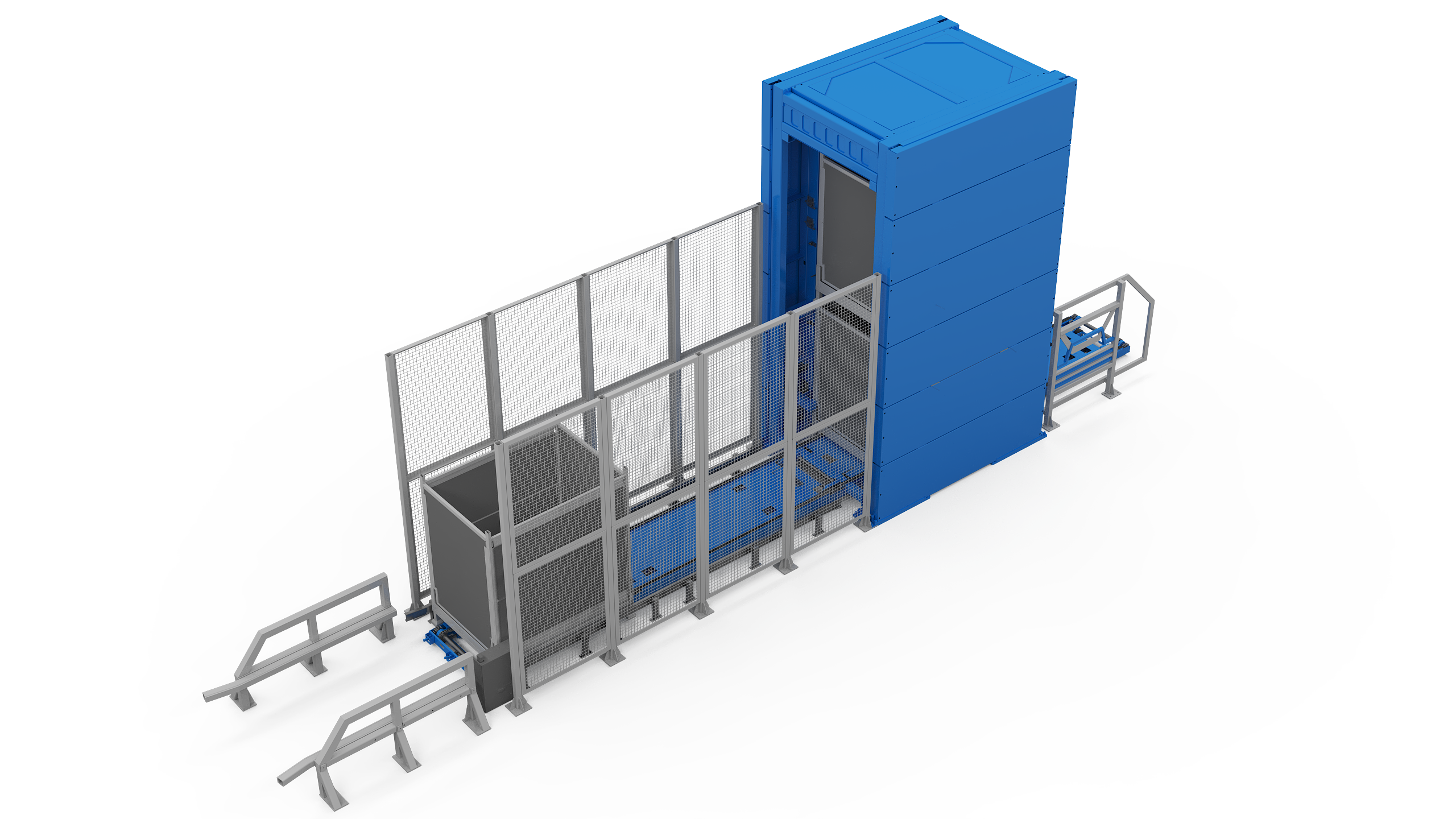

The depalletizer is mainly used for the automatic stacking and splitting of turnover cages / bins, enabling an efficient and continuous depalletizing process for goods.

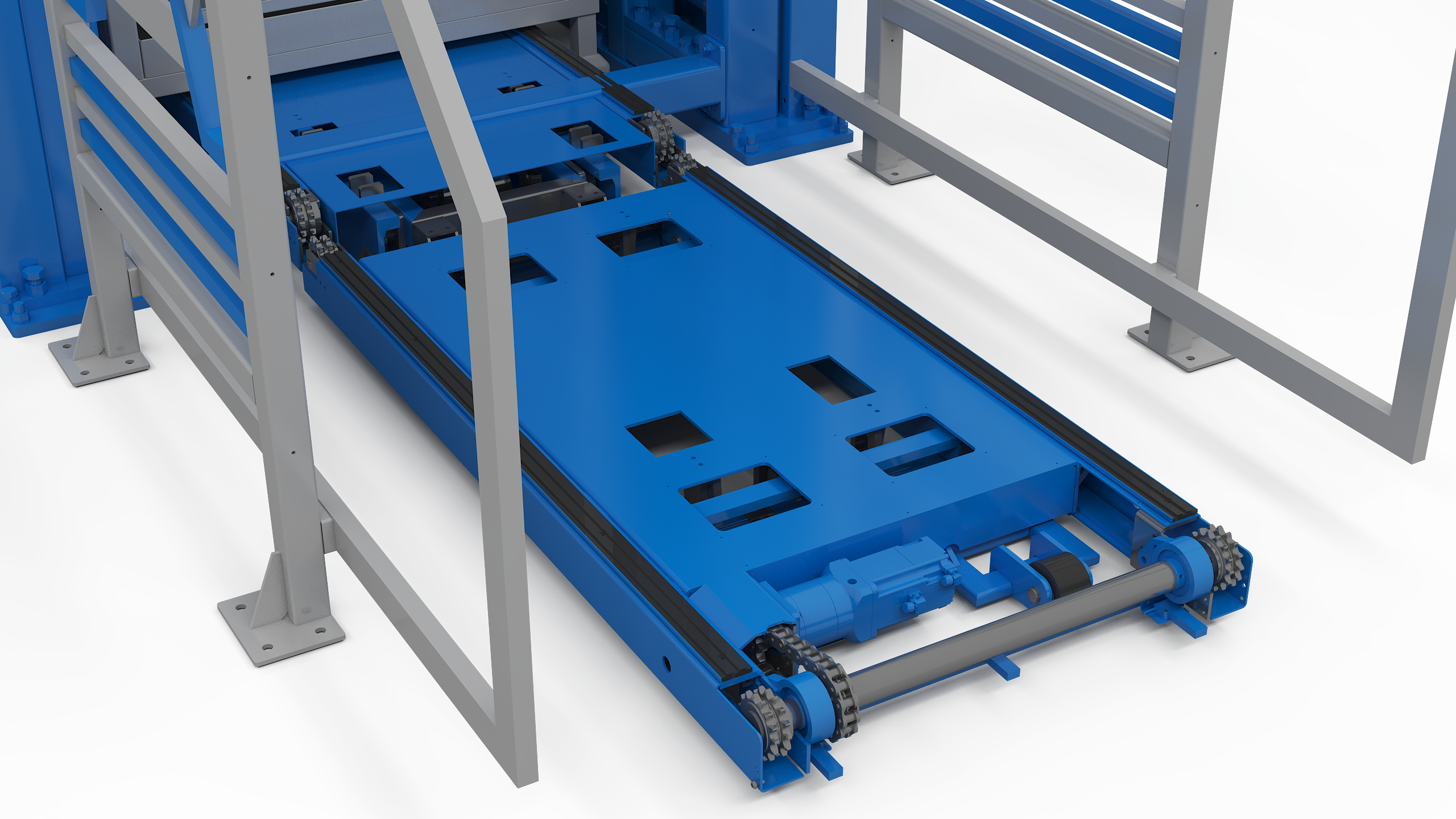

Through chain conveying and buffer mechanisms, the equipment automatically separates, sorts and smoothly transfers goods from cage carriers to downstream work areas without manual intervention.
 |  |  |
| Conveying speed | De-palletizing success rate | Equipment operating noise |
| ≥ 0.5 m/s | ≥99% | ≤ 72dB |
The depalletizer is mainly used for the automatic stacking and splitting of turnover cages / bins, enabling an efficient and continuous depalletizing process for goods.
Through chain conveying and buffer mechanisms, the equipment automatically separates, sorts and smoothly transfers goods from cage carriers to downstream work areas without manual intervention.
The depalletizer is mainly used for the automatic stacking and splitting of turnover cages / bins, enabling an efficient and continuous depalletizing process for goods.
Through chain conveying and buffer mechanisms, the equipment automatically separates, sorts and smoothly transfers goods from cage carriers to downstream work areas without manual intervention.
Automatic Depalletizing
Quickly separates stacked cage carriers or goods, reducing manual handling and repetitive operations.
Continuous Conveying & Buffering
Supports continuous handling of high-density cargo; the buffer zone is adjustable to achieve smooth connection between upstream and downstream operations.
Safety & Reliability
Sturdy structure equipped with protective devices and anti-collision systems to ensure the safety of equipment and cargo.
Efficiency Improvement
Combines automatic loading and depalletizing to significantly improve overall operational efficiency in logistics centers and reduce labor input.
| Conveying Speed | ≥0.5 m/s |
| Conveying Load | ≥1000kg (Double-deck Cage Trolley) |
| Cage Pick-up / Drop-off Cycle | ① Floor Chain Extension/Retraction: ≤6s ② Floor Chain Lifting/Lowering: ≤3s |
| Depalletizing & Palletizing Efficiency | 35s for 2 cages, 17.5s for per cage |
Automatic Depalletizing
Quickly separates stacked cage carriers or goods, reducing manual handling and repetitive operations.
Continuous Conveying & Buffering
Supports continuous handling of high-density cargo; the buffer zone is adjustable to achieve smooth connection between upstream and downstream operations.
Safety & Reliability
Sturdy structure equipped with protective devices and anti-collision systems to ensure the safety of equipment and cargo.
Efficiency Improvement
Combines automatic loading and depalletizing to significantly improve overall operational efficiency in logistics centers and reduce labor input.
Automatic Depalletizing
Quickly separates stacked cage carriers or goods, reducing manual handling and repetitive operations.
Continuous Conveying & Buffering
Supports continuous handling of high-density cargo; the buffer zone is adjustable to achieve smooth connection between upstream and downstream operations.
Safety & Reliability
Sturdy structure equipped with protective devices and anti-collision systems to ensure the safety of equipment and cargo.
Efficiency Improvement
Combines automatic loading and depalletizing to significantly improve overall operational efficiency in logistics centers and reduce labor input.
| Conveying Speed | ≥0.5 m/s |
| Conveying Load | ≥1000kg (Double-deck Cage Trolley) |
| Cage Pick-up / Drop-off Cycle | ① Floor Chain Extension/Retraction: ≤6s ② Floor Chain Lifting/Lowering: ≤3s |
| Depalletizing & Palletizing Efficiency | 35s for 2 cages, 17.5s for per cage |
| Conveying Speed | ≥0.5 m/s |
| Conveying Load | ≥1000kg (Double-deck Cage Trolley) |
| Cage Pick-up / Drop-off Cycle | ① Floor Chain Extension/Retraction: ≤6s ② Floor Chain Lifting/Lowering: ≤3s |
| Depalletizing & Palletizing Efficiency | 35s for 2 cages, 17.5s for per cage |
| | |
| Conveying speed | De-palletizing success rate | Equipment operating noise |
| ≥ 0.5 m/s | ≥99% | ≤ 72dB |
